Bed Exit Sensor Beam – PIR Technology – Double

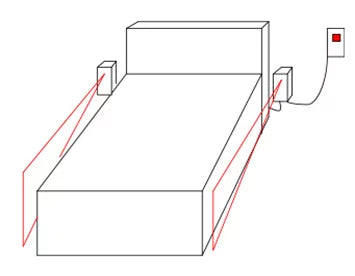

The PIRs project an invisible infra-red sensor beam along the sides the bed, which tapers down to meet the floor allowing care staff to walk around the end of  the bed.

If the resident swings a leg out of either side of  the bed, the invisible beam is broken and an alarm is generated through the facilities nurse call system.

The bed exit sensor beam alert kit for medical aged care facilities is available with either one or two PIR sensors. The single PIR sensor kit being required when the bed is positioned along the wall and can be exited from just the one side.

NEW AND IMPROVED –

Now incorporates LED light indication for armed and unarmed status.

Removable lugs allows the system to easily be configured by the facility to with work with all brand nurse call systems.

Works with Smart Caller, Austco, Sedco, Questek, Advanced Care, Xacom, Care Tech & more.

The Bed Exit Sensor Beams have been a top selling product for many years. They are durable and long lasting and if you do have a problem they are repairable and need not be discarded.  https://newsroom.unsw.edu.au/news/business-law/productivity-commission-has-released-proposals-bolster-australians-right-repair-do

DETAILS

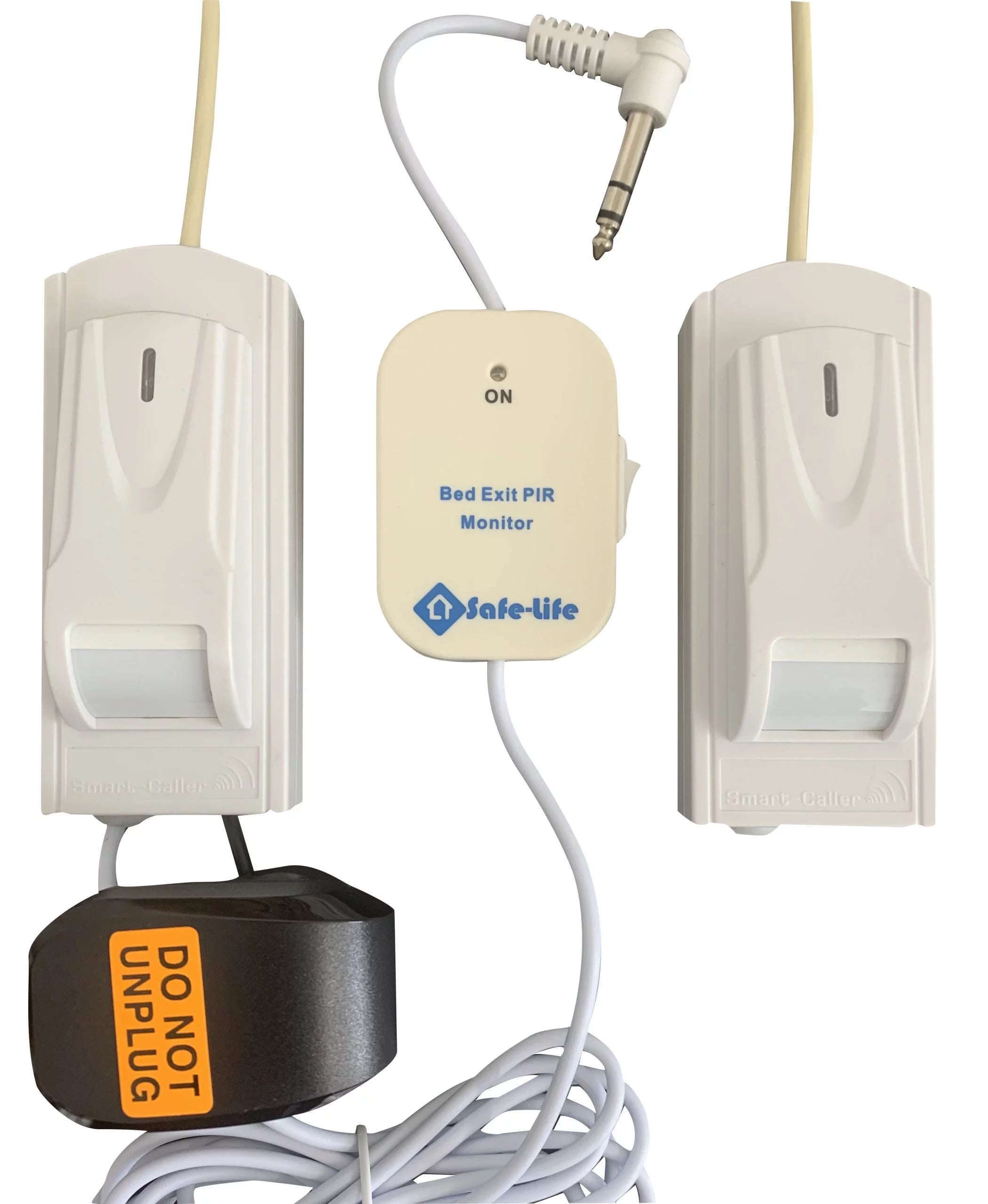

Dual Bed Exit Sensor Beam

The Dual Bed Exit Sensor Beam comes with brackets and fits to the wall at the head of the bed 40cm off the floor. The wall mount brackets are made of durable plastic which protects the sensor beams.

The system connects to the facility nurse call system at the over bed call point and is compatible will all brands of nurse call systems.

Being a discreet system with no moving parts or obvious controls the Bed Exit Sensor PIR is non invasive and robust most the time the resident wont even know its there..

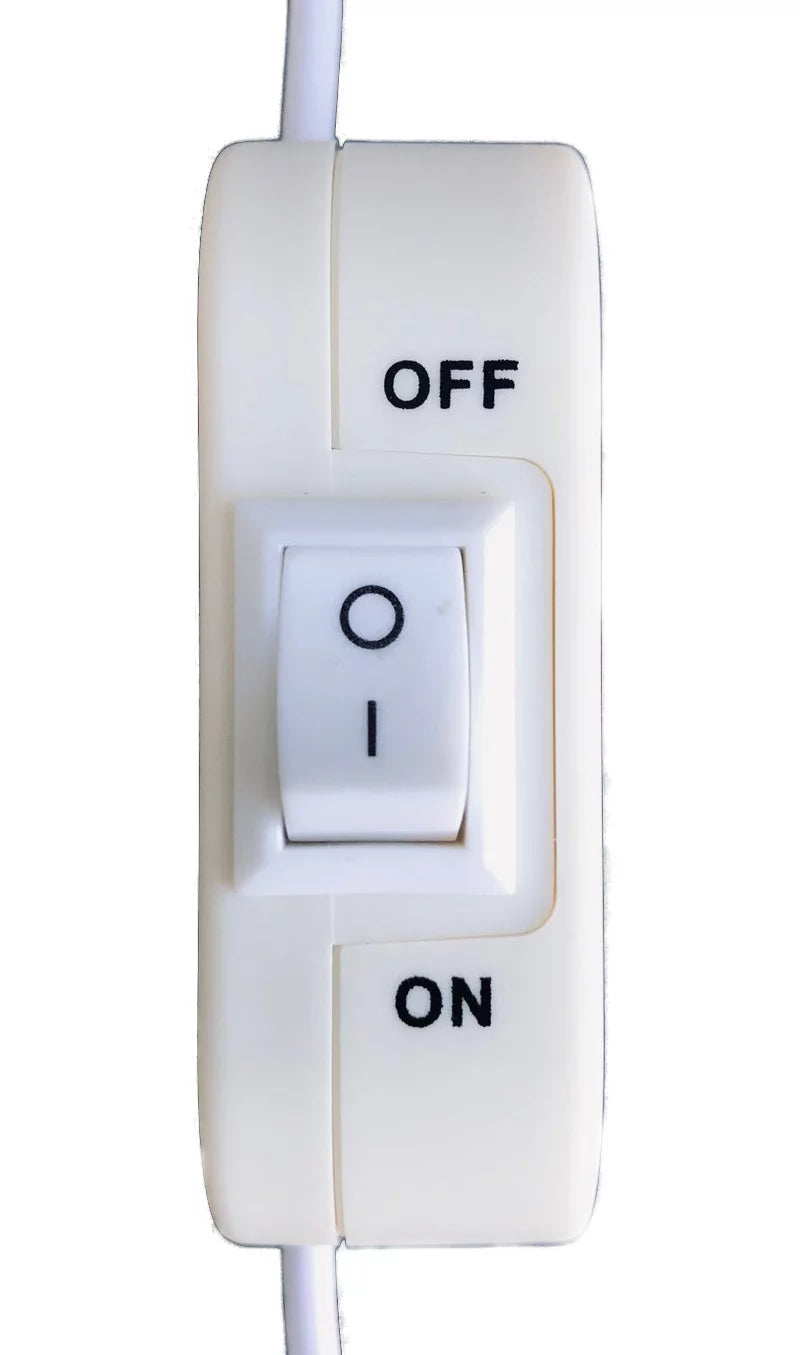

Spare brackets are inexpensive and readily available so the system can be moved from room to room as required, leaving the brackets on the wall for future use.  The sensor beam system comes complete with a power pack and is turned on and off at the in-line switch located close to the bed side call point.

The  6.3 mm plug can be configured to suit all brand nurse call systems and is delivered as a mono configuration unless requested otherwise. Converting the 6.3mm plug configuration is easily achieved by removing a lug on a set of pins.  If you’re unsure what type of connection you require for your nurse call system please call Safe Life for further information.

Trial periods are available with this product and don’t forget to purchase a double adapter to allow the resident’s pendant cord to also connect to the over bed call point.  To learn more about PIR technology click here.
